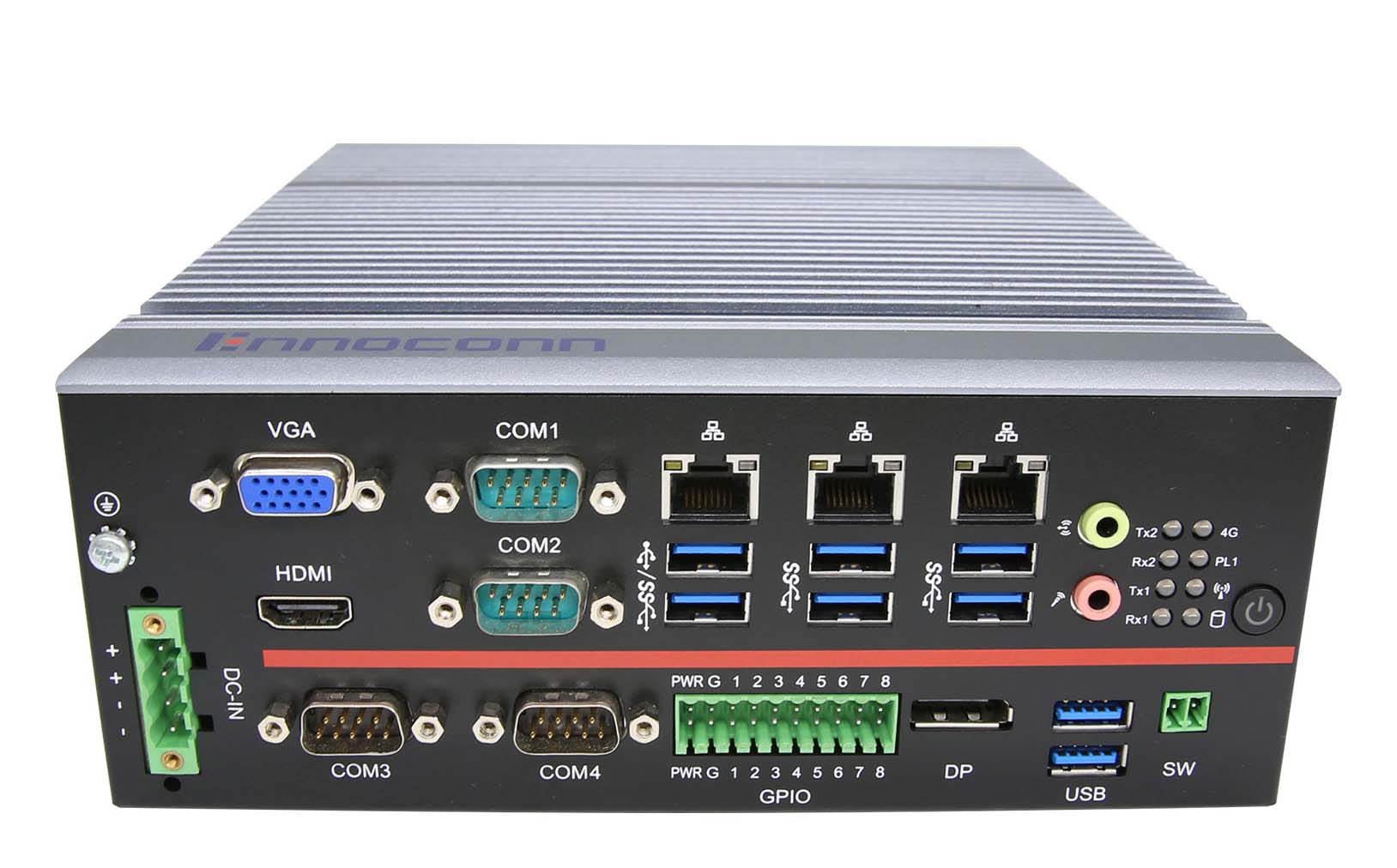

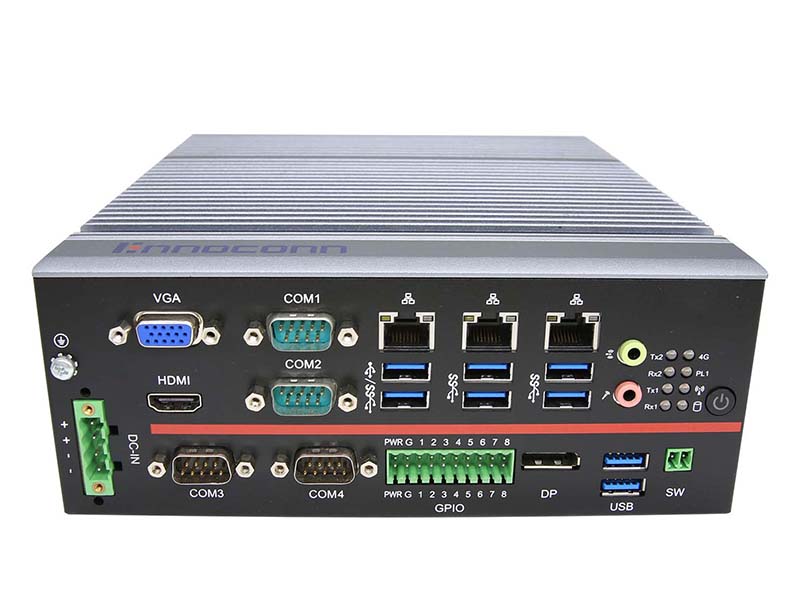

嵌入式工控機 CES-EH11-D340

Intel? Skylake-S/Kabylake-S series LGA1151Pentium/Celeron/Core processor, H110 chipset, 3 x LAN, max 6 x COM, 10 x USB, 16bit GPIO, Optional 9-36V power input, fanless system

在線咨詢全國熱線
400-816-0035

采用Skylake-S/Kabylake-S系列LGA1151奔騰/賽揚/酷睿處理器，搭載H110芯片組
支持雙通道DDR4 2133MHz SO-DIMM內存插槽，內存容量最大可達32GB
支持三個千兆網口
支持VGA，HDMI及DP++ 雙顯
內置2 x 2.5寸HDD/SSD支架
內置1 x Mini-PCIe/mSATA槽，1 x M.2 2230 wifi卡槽及1 x M.2 2242擴展槽，支持多種模塊擴展

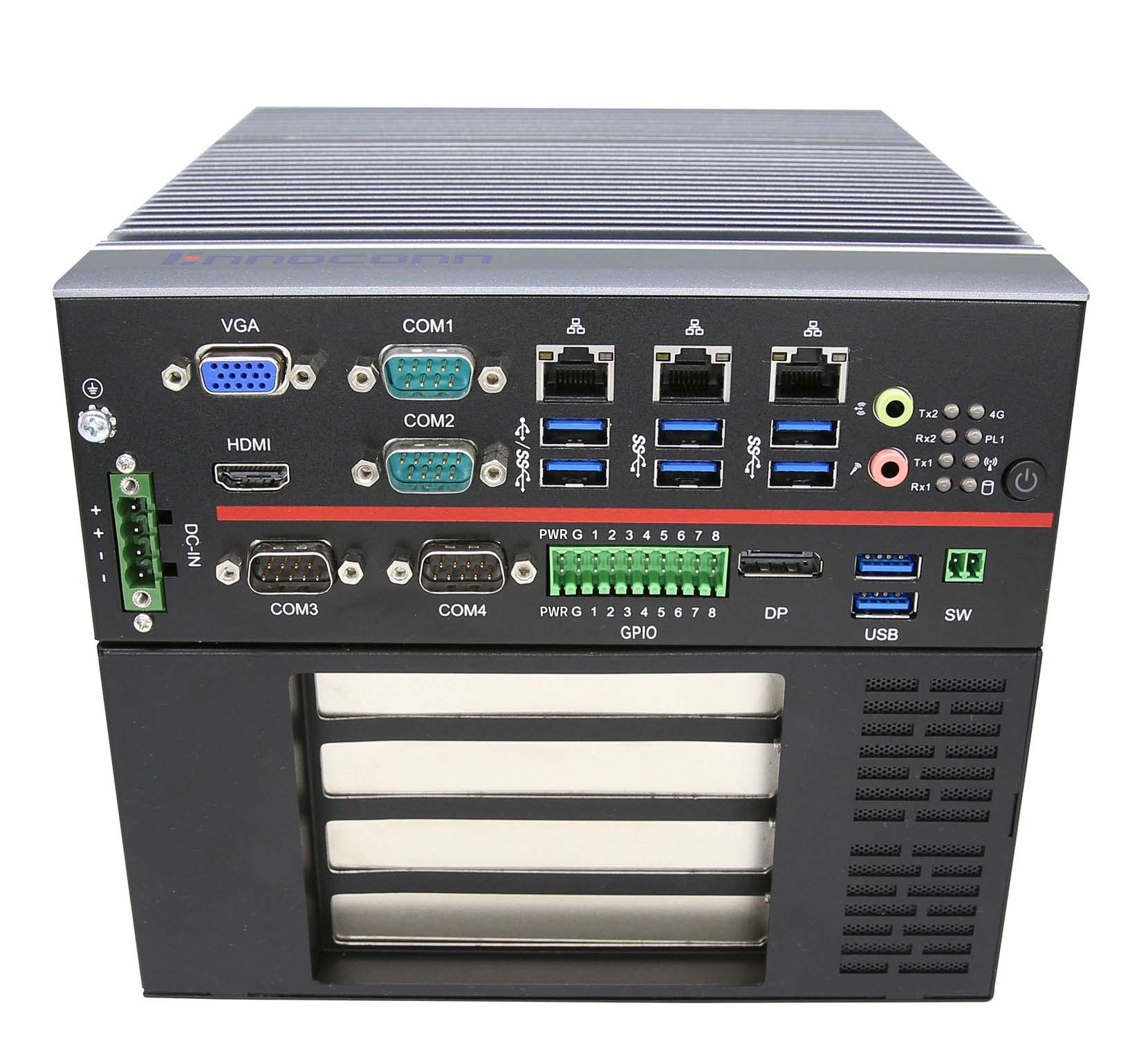

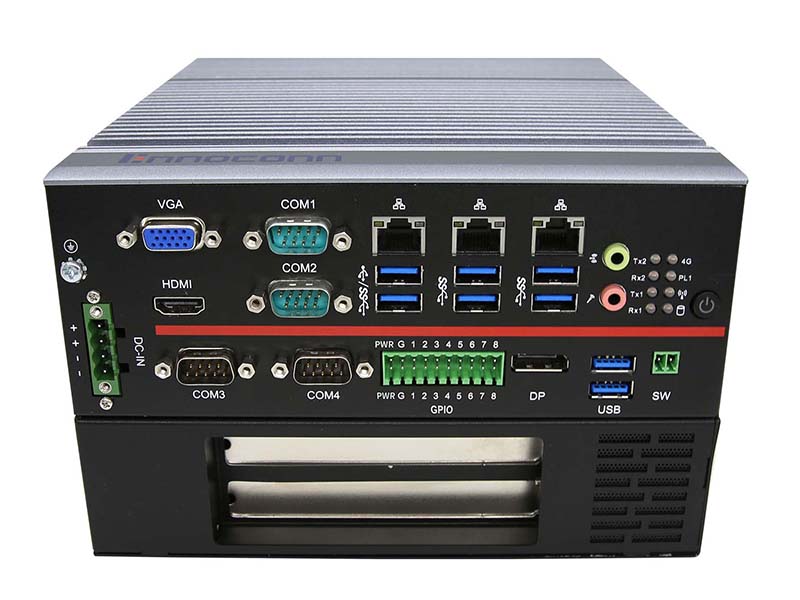

可支持PCIe X 16，PCIe X 8，PCIe X 4，PCIe X 1及PCI擴展插槽
標準19-24V DC電源輸入，可選寬壓9-36V DC-IN

產品規格

系統 System

處理器 Processor	Intel^? 6th/7th Gen. Pentium^?, Celeron^?, Core ? i3/i5/i7 Processor, LGA1151 Socket, up to 65W
芯片組 Chipset	Intel^? H110 Chipset
內存 Memory	2 x DDR4 2133MHz SO-DIMM, up to 32GB
圖形 Graphics	Intel^? HD Graphics 530/510 (Intel 6th Gen. CPU) Intel^? HD Graphics 630 (Intel 7th Gen. CPU)
存儲 Storage	2 x 2.5" SATA 3.0 HDD/SSD Bay 1 x M.2 2242 SSD slot
操作系統 OS	Windows7/8/10,Linux(Intel^? 6th/ CPU) Windows10,Linux(Intel^? 7th/ CPU)
看門狗定時器 Watchdog Timer	Programmable 255 levels timer interval, from 1~255 sec/min

外部接口 External I/O

網口 Ethernet	2 x RJ45, Intel^? i211AT GbE (10/100/1000 Mbps) 1 x RJ45, Intel^? I219LM GbE (10/100/1000 Mbps)
顯示 Video	1 x VGA: max resolution up to 1920 x 1200 1 x HDMI: max resolution up to 4096 x 2160 1 x DP++: max resolution up to 4096 x 2304
音頻 Audio	1 x Line-out, 1 x Mic-in, Realtek^? ALC269 HD Audio codec
串口 COM	4 x RS232/422/485 auto-flow 2 x RS232 (optional by internal pin head)
USB	4 x USB3.0, 4 x USB2.0, 2 x USB2.0 pin head
GPIO	1 x 16bit programmable GPIO (default 3.3V, 5V optional)
按鈕 Button	1 x Power button
指示燈 LED	1 x Power LED (Green for Power-on, Blink for Sleep mode, Off for Power-off) 1 x HDD LED (Yellow blink for Data read or write) 2 x COM1 LED for Rx1 and Tx1 2 x COM2 LED for Rx2 and Tx2 1 x Wifi communication LED (Green blink for communication) 1 x 4G communication LED (Green blink for communication) 1 x PL1 for user defination (can indicate CPU temperature, voltage dectact, etc）
遠程開關 Remote ON-OFF	1 x Remote ON-OFF

內部接口 Internal I/O

擴展接口 Expansion	1 x Mini-PCIe slot 1 x M.2 2230 slot
SIM 卡	1 x 3G/4G SIM socket

擴展模組 Extension module

環境 Environmental

操作溫度 OperatingTemp.	-10℃ ~ 40℃ with 0.7m/s air flow (with 65W CPU and industrial SSD) -10℃ ~ 50℃ with 0.7m/s air flow (with 35W CPU and industrial SSD) 0℃ ~ 30℃ with 0.7 m/s air flow (HDD)
存儲溫度 Storage Temp.	-40℃ ~ 85℃
濕度Relative Humidity	5% ~ 95%, 非凝結狀態Non-condensing
振動 Vibration	SSD: 5~500Hz, 2Grms operation HDD: 5~500Hz, 1Grms operation
機械沖擊 Shock	Operation: 10G@11ms Non-operation: 30G@11ms

電源 Power

電源輸入 Power Input

19-24V DC, 4-pin phoenix connector (9-36V DC optional with power board)

機構Mechanical

外觀 Housing	鋁合金 Aluminum Alloy
安裝方式 Mounting	桌面式 (Desk-Mount), 壁掛式 (Wall-Mount)
尺寸 Dimension	200 x 230 x 78 mm
重量 Weight	3.5kg

認證 Certification

安規認證 Safety Certification

CCC
