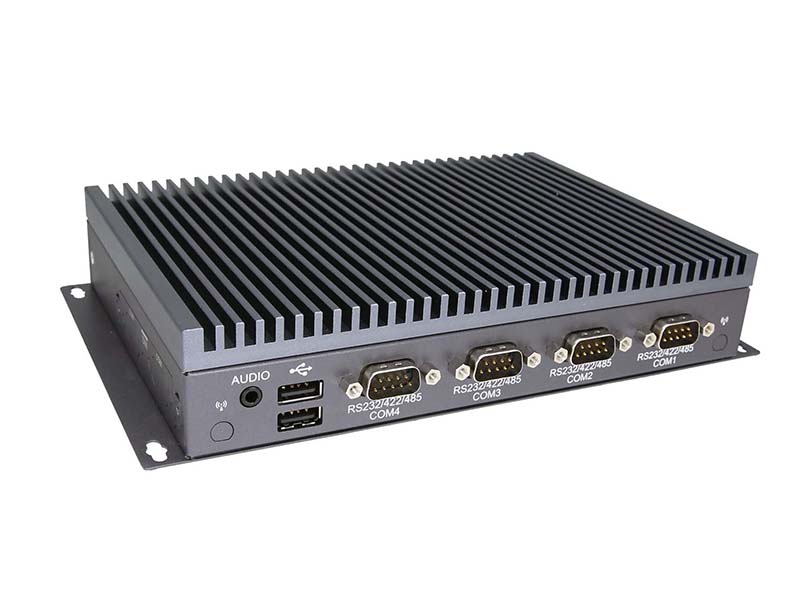

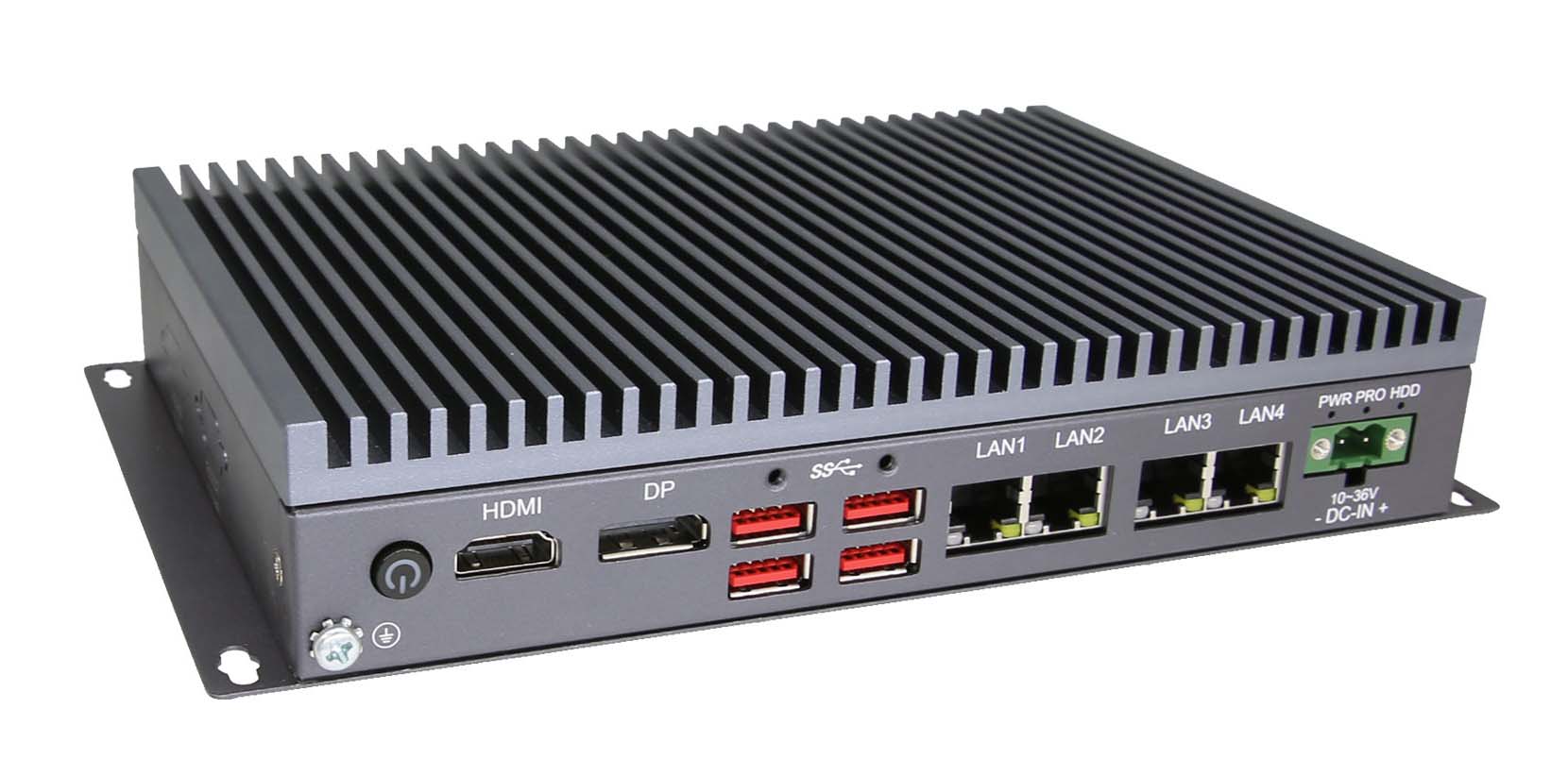

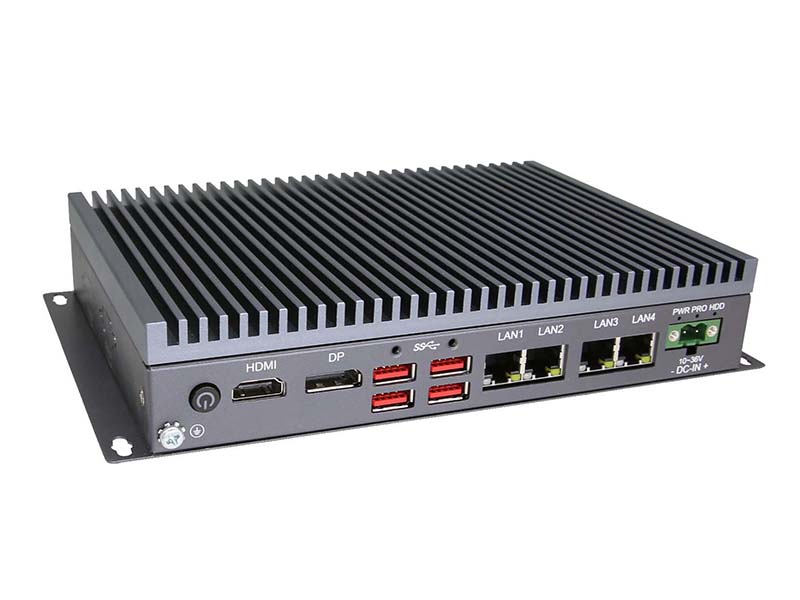

嵌入式工控機 CES-R430-W44A

Intel? Celeron 4305UE CPU Dual Core, TDP 15W, 4 x LAN, 4 x COM (up to 6 x COM), 6 x USB, 10-36V power input, fan-less system

在線咨詢全國熱線
400-816-0035

板載Intel^? Celeron 4305UE CPU，主頻最大可以達到2.0GHz
支持單通道DDR4 1866/2133MHz SO-DIMM內存插槽，內存容量最大可達32GB
支持4個千兆網口
支持DP/HDMI 擴展顯示
內置1 x Mini-PCIe, 1 x M.2 2242, 1 x M.2 2230(CNVI), 1 x M.2 3042/3052 多種模塊擴展
10~36V寬壓設計，可鎖附DC-IN接口

產品規格

系統 System

處理器 Processor	Intel^? Celeron 4305UE CPU (2.0GHz)
內存 Memory	1 x DDR4 1866/2133MHz SO-DIMM up to 32 GB
圖形 Graphics	Intel^?UHD Graphics 610, dual display
存儲 Storage	1 x mSATA 1 x M.2 2242 SSD 1 x 2.5" SATA 3.0 HDD/SSD BAY
操作系統 OS	Windows 10, Linux
看門狗定時器 Watchdog Timer	Programmable 255 levels timer interval, from 1~255 sec/min

外部接口 External I/O

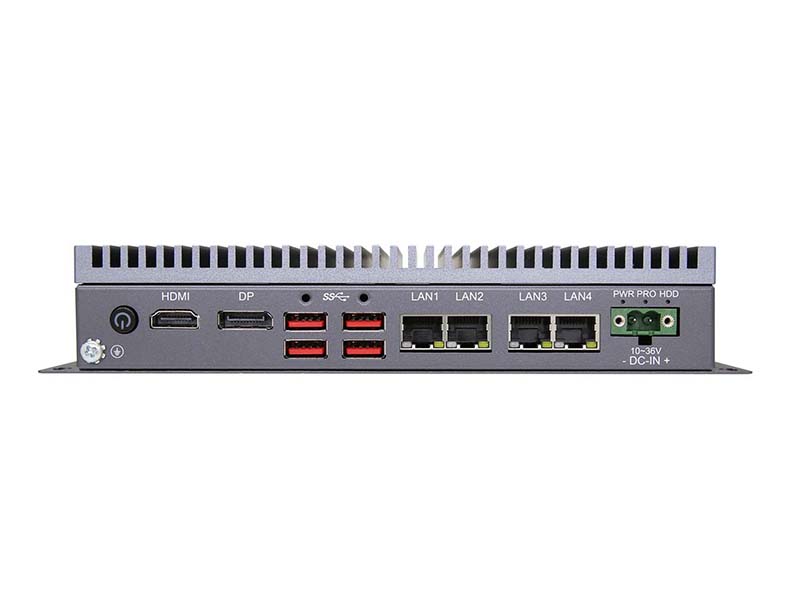

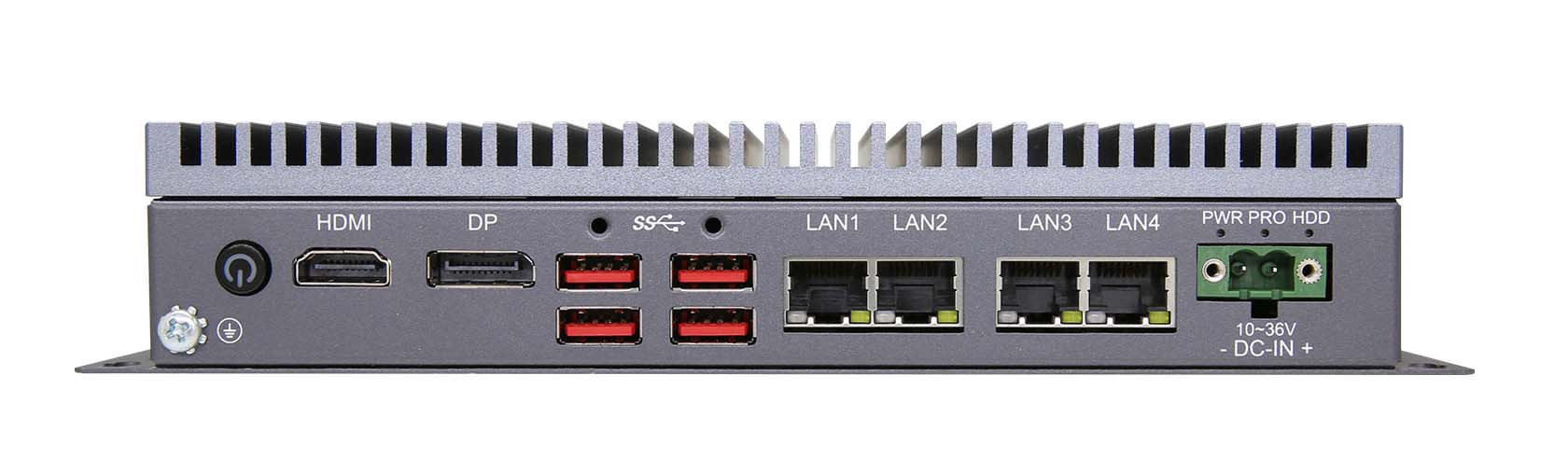

網口 Ethernet	4 x RJ45, Intel^?2 x i211 and 2 x i210 GbE (10/100/1000 Mbps)
顯示 Video	1 x HDMI: max resolution up to 4096x2304@24Hz 1 x DP: max resolution up to 4096x2304@60Hz
存儲 Storage	1 x Audio(Line-out&Mic-in 2 in 1) Realtek^? ALC888S HD Audio codec 1 x Bu ilt-in Speaker (optional)

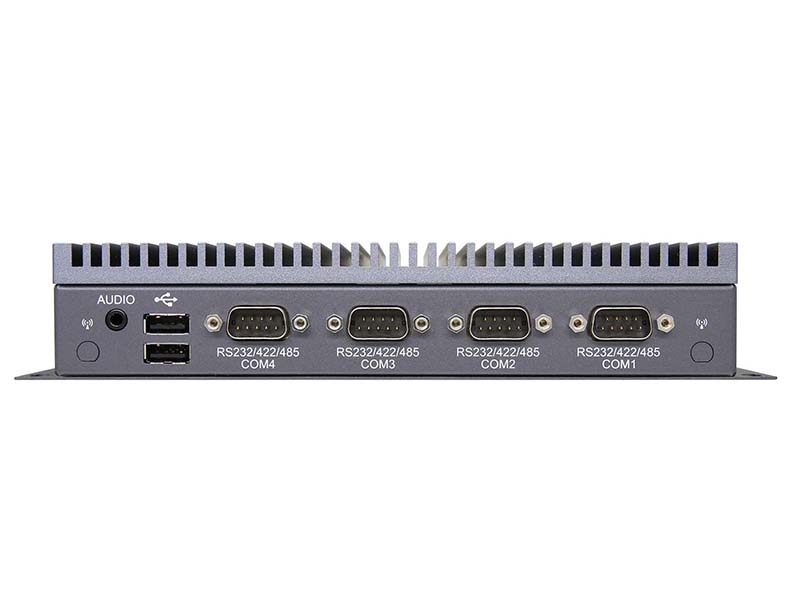

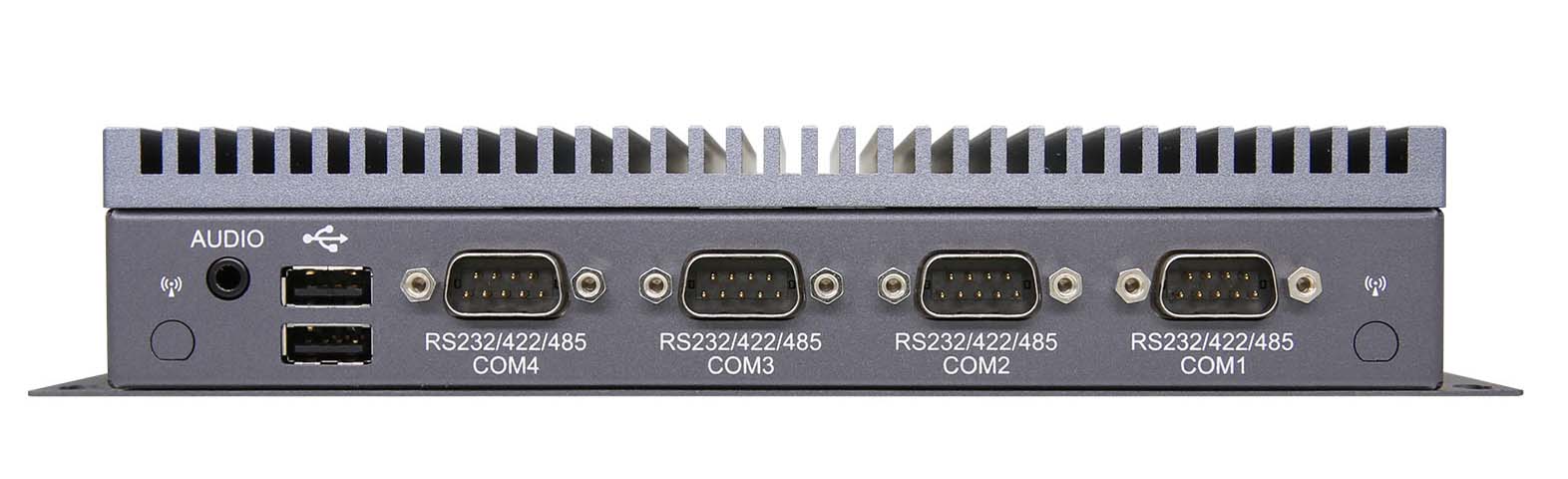

串口 COM	4 x RS232/422/485 auto-flow 2 x RS232 (optional by 3*3 pin-head)
USB	4 x USB 3.1 Gen2 2 x USB 2.0
DIO	1 x 8bit programmable GPIO (optional)
按鈕 Button	1 x Power button (White for Power-on, Blink for Sleep mode, Off for Power-off)
指示燈 LED	1 x Power LED (Green for DC-in) 1 x HDD LED (Green blink for Data read or write) 1 x programmable LED (Green Default monitoring CPU temperature)

內部接口 Internal I/O

擴展接口 Expansion	1 x Mini-PCIe slot (Support PCIE/SATA/USB2.0 Singal) 1 x M.2 2230 Key-E slot (only supported CNVI Wifi module) 1 x M.2 2242 slot (Support PCIe/SATA signal)
SIM 卡	1 x SIM Card socket for 3G/4G module

擴展模組 Extension module

Extension Module A (optional)	1 x Mini-PCIe slot (Support PCIE/USB2.0 Singal) 1 x M.2 3042/3052 Key-B slot(5G communication module supported) 1 x EDP: max resolution up to 4096x2304@60Hz 1 x SIM socket for 5G module
Extension Module B (optional)	1 x Mini-PCIe slot (Support PCIE/USB2.0 Singal) 1 x USB3.0 1 x EDP: max resolution up to 4096x2304@60Hz
Extension Module C (optional)	1 x 16bit DI/O with optocoupler isolation DI 2500vrms, DO 2500vrms, response time ≤2ms, Output Frequency≤500Hz, Maximum driving capacity 100mA, NPN or PNP by optional

環境 Environmental

操作溫度 OperatingTemp.	-20℃ ~ 60℃ (SSD), 0℃ ~ 40℃ (HDD)
存儲溫度 Storage Temp.	-40℃ ~ 85℃
濕度Relative Humidity	5% ~ 95%, 非凝結狀態Non-condensing
振動 Vibration	SSD: 5~500Hz, 2Grms operation HDD: 5~500Hz, 1Grms operation
機械沖擊 Shock	Operation: 10G@11ms Non-operation: 30G@11ms

電源 Power

電源輸入 Power Input

10~36V DC, 2-pin phoenix connector

機構Mechanical

外觀 Housing	鋁合金 Aluminum Alloy
安裝方式 Mounting	Desk-Mount (桌面式) Wall-Mount (壁掛式) VESA-Mount (100 x 100mm)(optional)
尺寸 Dimension	224 x 140 x 40 mm (基礎型) 224 x 140 x 65 mm (一層擴展) 224 x 140 x 85 mm (二層擴展)
重量 Weight	1.35kg

認證 Certification

安規認證 Safety Certification

CCC
